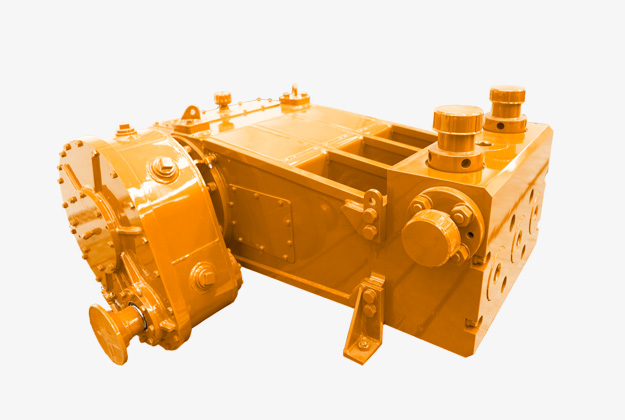

JR600S pump is a widely used triplex plunger pump available in the market. The unique offset design greatly reduces the load on the crosshead, slide and crankshaft bearing. The gearbox can be installed at either the left or right side of the pump with optional installation angles which can meet different drive requirements. The compact structure enables back-to-back mounting. The pump is suitable for acidizing and cementing applications.
| Rated Brake Horsepower: 600 hp | Gear Ratio: 4.6:1 |
| Maximum Rod Load: 100,000 lbf | Overall Dimension: 50×54.41×26.89 i |
| Stroke Length: 6 in | Weight: 4,674 lbs |
| Plunger Dia. | Disp. | Displacement at Pump Strokes per Minute | |||||||||
in |
gal/rev |
50 | 120 | 200 | 300 | 450 | |||||
gpm |
psi |
gpm |
psi |
gpm |
psi |
gpm |
psi |
gpm |
psi |
||
| 2 1/2 | 0.38 | 19 | 20,000 | 46 | 20,000 | 77 | 12,099 | 115 | 8,066 | 172 | 5,377 |
| 63.5 | 1.45 | 72.4 | 137.9 | 173.8 | 137.9 | 289.6 | 83.4 | 434.4 | 55.6 | 651.6 | 37.1 |
| 2 3/4 | 0.46 | 23 | 16,836 | 56 | 16,665 | 93 | 9,999 | 139 | 6,666 | 208 | 4,444 |
| 69.85 | 1.75 | 87.6 | 116.1 | 210.2 | 114.9 | 350.4 | 69 | 525.6 | 46 | 788.4 | 30.6 |
| 3 | 0.55 | 28 | 15,000 | 66 | 14,003 | 110 | 8,402 | 165 | 5,601 | 248 | 3,734 |
| 76.2 | 2.09 | 104.3 | 103.5 | 250.2 | 96.6 | 417 | 57.9 | 625.5 | 38.6 | 938.3 | 25.8 |
| 3 1/2 | 0.75 | 37 | 10,394 | 90 | 10,288 | 150 | 6,173 | 225 | 4,115 | 337 | 2,743 |
| 88.9 | 2.84 | 141.9 | 71.7 | 340.6 | 71 | 567.6 | 42.6 | 851.4 | 28.4 | 1,277.10 | 18.9 |
| 4 | 0.98 | 49 | 7,958 | 118 | 7,877 | 196 | 4,726 | 294 | 3,151 | 441 | 2,100 |
| 101.6 | 3.71 | 185.3 | 54.9 | 444.8 | 54.3 | 741.3 | 32.6 | 1,112.00 | 21.7 | 1,668.00 | 14.5 |
| 4 1/2 | 1.24 | 62 | 6,288 | 149 | 6,224 | 248 | 3,734 | 372 | 2,489 | 558 | 1,660 |
| 114.3 | 4.69 | 234.6 | 43.4 | 563 | 42.9 | 938.3 | 25.8 | 1,407.40 | 17.2 | 2,111.10 | 11.4 |
| Brake Power (hp/kW) | 253/188 | 600/447 | 600/447 | 600/447 | 600/447 | ||||||
| Input Speed (rpm) | 231 | 553 | 922 | 1,383 | 2,075 | ||||||
