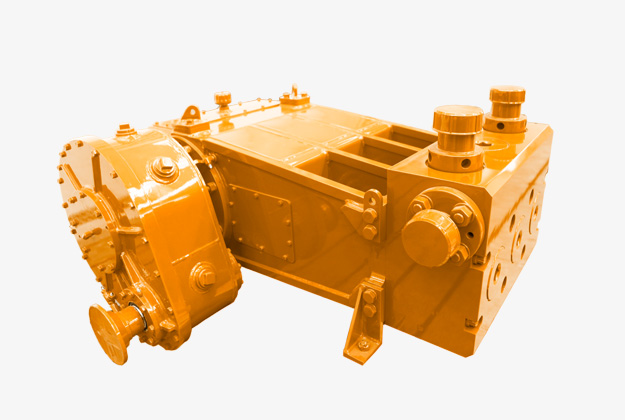

JR600N Triplex Plunger Pump

Description

JR600N pump features stable and efficient helical gear drive. The unique offset drive of the power end greatly reduces the load of crosshead, slide and bearing. Modular parts of JR600N are interchangeable with parts of JR600S and JR1000QS, reducing inventory category, maintenance and inventory control cost. JR600N pump prevents the back-flow from entering power end, suitable for acidizing and cementing applications.

Specifications

Rated Brake Horsepower: 600 hp Gear Ratio: 4.6:1
Maximum Rod Load: 100,000 lbf Overall Dimension:

58.78×53.35×26.14 in

Stroke Length: 6 in Weight: 4,945 lbs



Plunger Dia. Disp. Displacement at Pump Strokes per Minute

in
(mm)

gal/rev
(L/rev)

50 120 200 300 450

gpm
(L/min)

psi
(MPa)

gpm
(L/min)

psi
(MPa)

gpm
(L/min)

psi
(MPa)

gpm
(L/min)

psi
(MPa)

gpm
(L/min)

psi
(MPa)

2 1/2 0.38 19 20,000 46 20,000 77 12,099 115 8,066 172 5,377
63.5 1.45 72.4 137.9 173.8 137.9 289.6 83.4 434.4 55.6 651.6 37.1
2 3/4 0.46 23 16,836 56 16,665 93 9,999 139 6,666 208 4,444
69.85 1.75 87.6 116.1 210.2 114.9 350.4 69 525.6 46 788.4 30.6
3 0.55 28 15,000 66 14,003 110 8,402 165 5,601 248 3,734
76.2 2.09 104.3 103.5 250.2 96.6 417 57.9 625.5 38.6 938.3 25.8
3 1/2 0.75 37 10,394 90 10,288 150 6,173 225 4,115 337 2,743
88.9 2.84 141.9 71.7 340.6 71 567.6 42.6 851.4 28.4 1,277.10 18.9
4 0.98 49 7,958 118 7,877 196 4,726 294 3,151 441 2,100
101.6 3.71 185.3 54.9 444.8 54.3 741.3 32.6 1,112.00 21.7 1,668.00 14.5
4 1/2 1.24 62 6,288 149 6,224 248 3,734 372 2,489 558 1,660
114.3 4.69 234.6 43.4 563 42.9 938.3 25.8 1,407.40 17.2 2,111.10 11.4
Brake Power (hp/kW)   253/188 600/447 600/447 600/447 600/447
Input Speed (rpm)  231 553 922 1,383 2,075

Based on 90% ME and 100% VE- intermittent service only.
