The unit is designed with return pipeline to recycle the overflowed LN2, improving the LN2 utilization;
The high vacuum and multilayer heat insulation design of the tank ensures good heat preservation performance and reduces liquid evaporation;
Spring type and rupture disc type protection devices are designed on the tank manifold, one for use and one for standby, ensuring the continuous operation and tank safety.

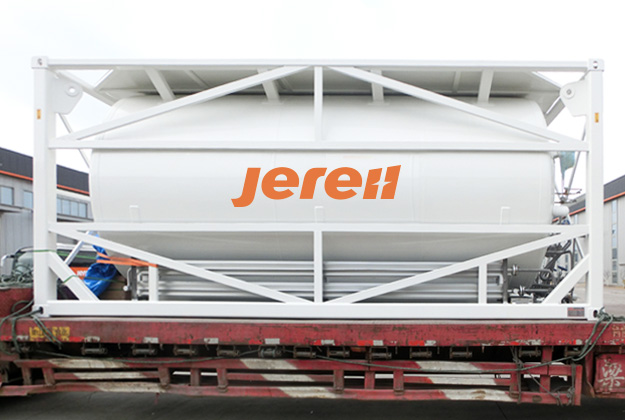

Diversified products are available for different customer requirements, including container type or trailer mounted equipment for offshore platform.

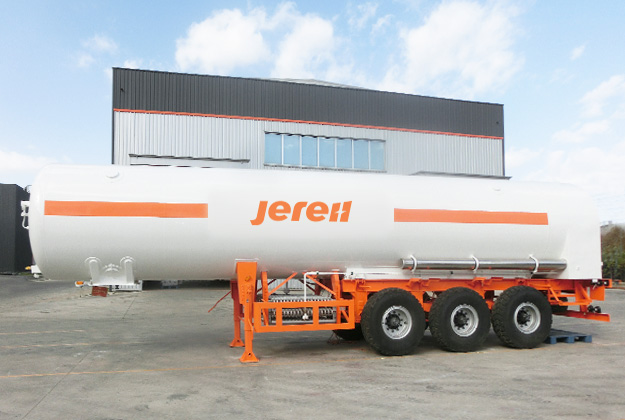

Carrier | Skid | Trailer |
---|---|---|
Effective Volume | 1,000 gal (3.5 m3) / 2,000 gal (7.5 m3) / 3,000 gal (11 m3) / 4,000 gal (15 m3) / 4,500 gal (17 m3) / 5,000 gal (19 m3) | 4,500 gal (17 m3) / 5,000 gal (19 m3) / 6000 gal (23 m3) / 7,000 gal (26 m3) / 8000 gal (30 m3) |
Rated Working Pressure | 45 psi (0.31 Mpa ) / 116 psi (0.8 Mpa) | 45 psi (0.31 Mpa ) / 116 psi (0.8 Mpa) |
