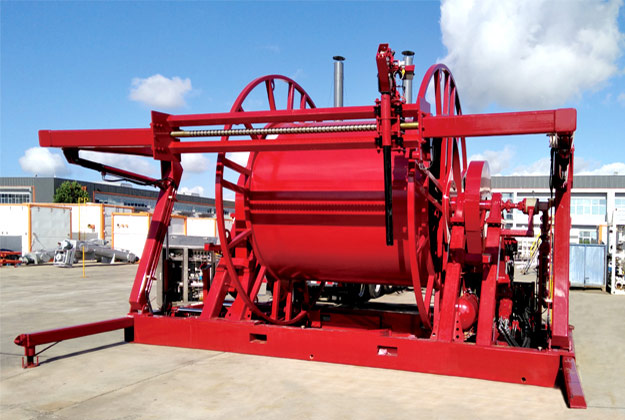

Levelwind override system ensures tubing to be spooled evenly;
Telescopic structure allows larger reels to be carried and also reduces transportation cost;
Changeable reel pivot permits both wooden reels and steel reels to be carried;
Controls integrated on a remote console to guarantee a safe distance during operation.
| Model | DGQ180-102 | LGGTQ150-98-105 |
|---|---|---|
| Max. Reel Outside Flange Diameter | 180″ | 150" |
| Max. Reel Outside Flange to Flange Width | 102″ | 120″ |
| Min. Reel Outside Flange to Flange Width | 58″ | 70" |
| Max. Load Capacity | 40 t | 50 t |
| Dimensions (without control console ) | 4,500×4,500×4,000 mm | 7,000×2,500×2,770 mm |
| Max. Transportation Dimensions(without reel) | 4,500×2,600×3,300 mm (without guard) 4,560×2,670×3,300 mm (with guard) |
7,000×2,500×2,770 mm(without guard) 7,100×2,580×2,800 mm(with guard) |
| Weight (without reel) | 5,000 kg | 10,000 kg |
