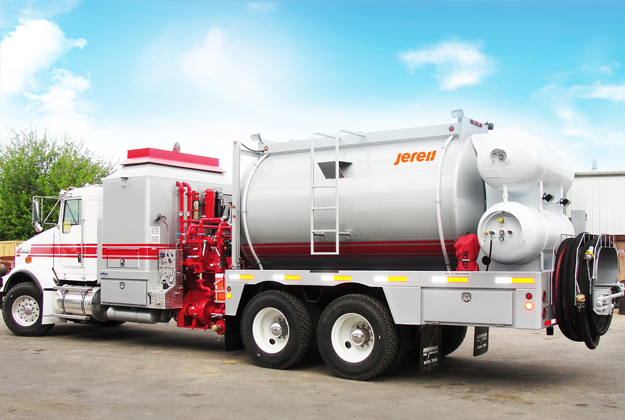

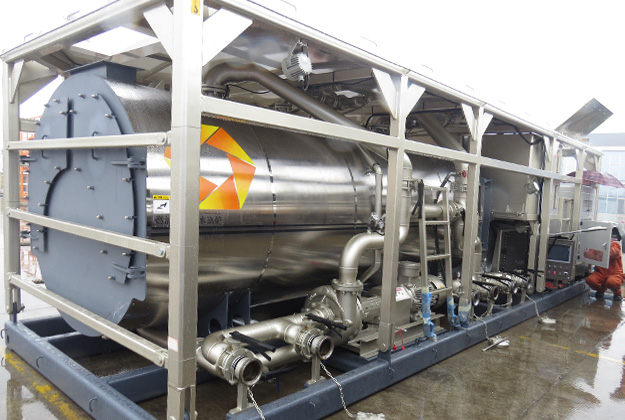

Hot Oil Unit

Features

  • Suitable for onshore paraffin removal applications;

  • Applicable to HTHP, HTLP, LTHP and LTLP services;

  • Jereh intelligent control system permits one-key setting and automatic temperature regulation (±2 ℃);

  • Remote CO2/dry powder fire extinguishers, overpressure and overtemperature protections deliver reliable safety;

  • Resistant to high temperature and corrosion, and applicable to water, crude oil, sea water and other chemical solutions;

  • The large capacity storage tank, fuel tank, liquid supply system and high viscosity liquid transferring system ensure efficient and continuous operation on site.

Specifications

Carrier Truck / Trailer / Skid
Chassis BENZ / BEIBEN
Plunger Pump JR600S
Centrifugal Pump 3×2×13
Heater 1 MW (3.5 M Btu/h) / 2.3MW (8 M Btu/h )
Fuel Diesel / LPG / CNG / LNG
Max. Working Pressure 10,000 psi (70 MPa)
Heating Capacity 105 gpm (400 L/min)
Heating Medium Water / Crude Oil
